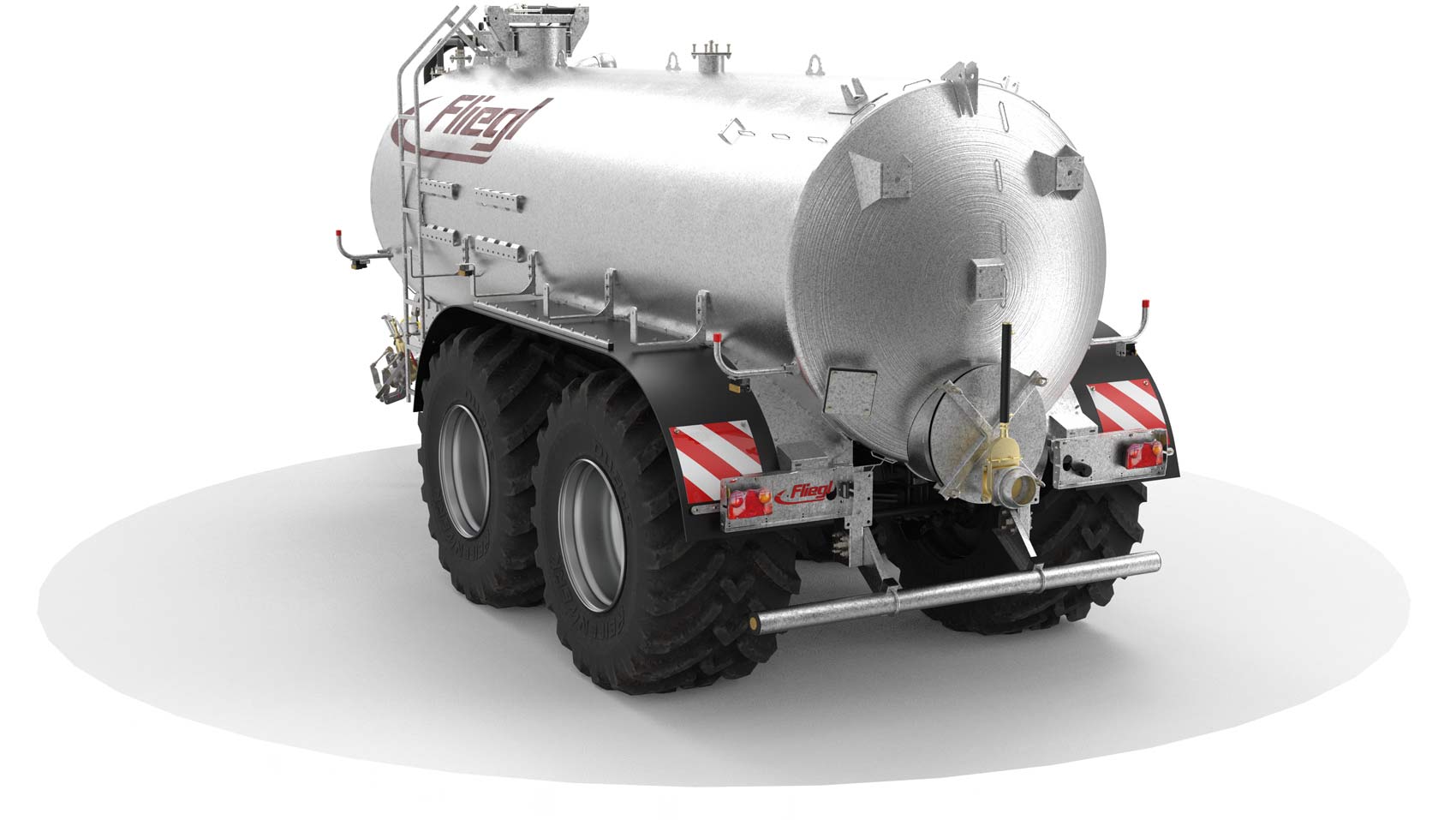

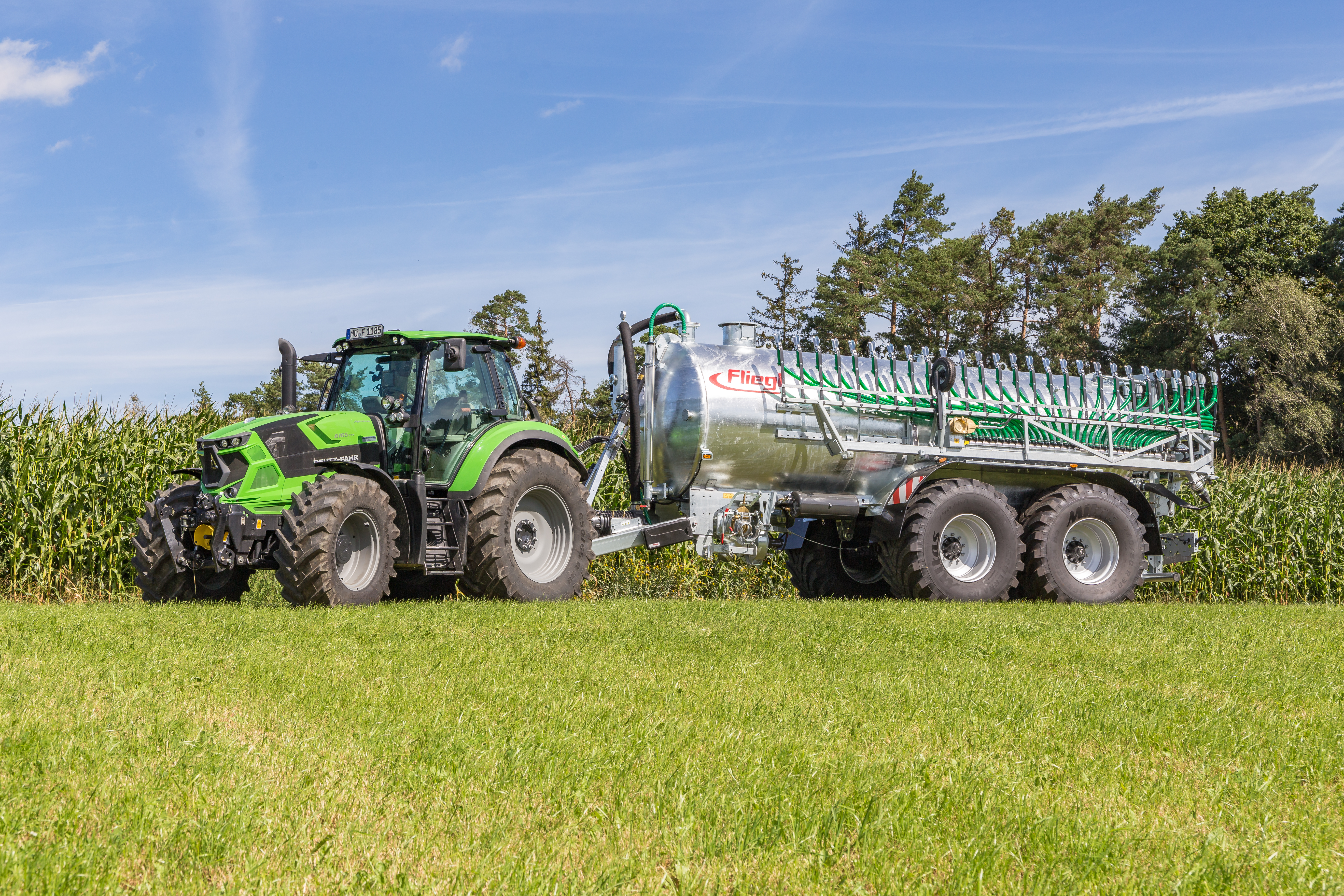

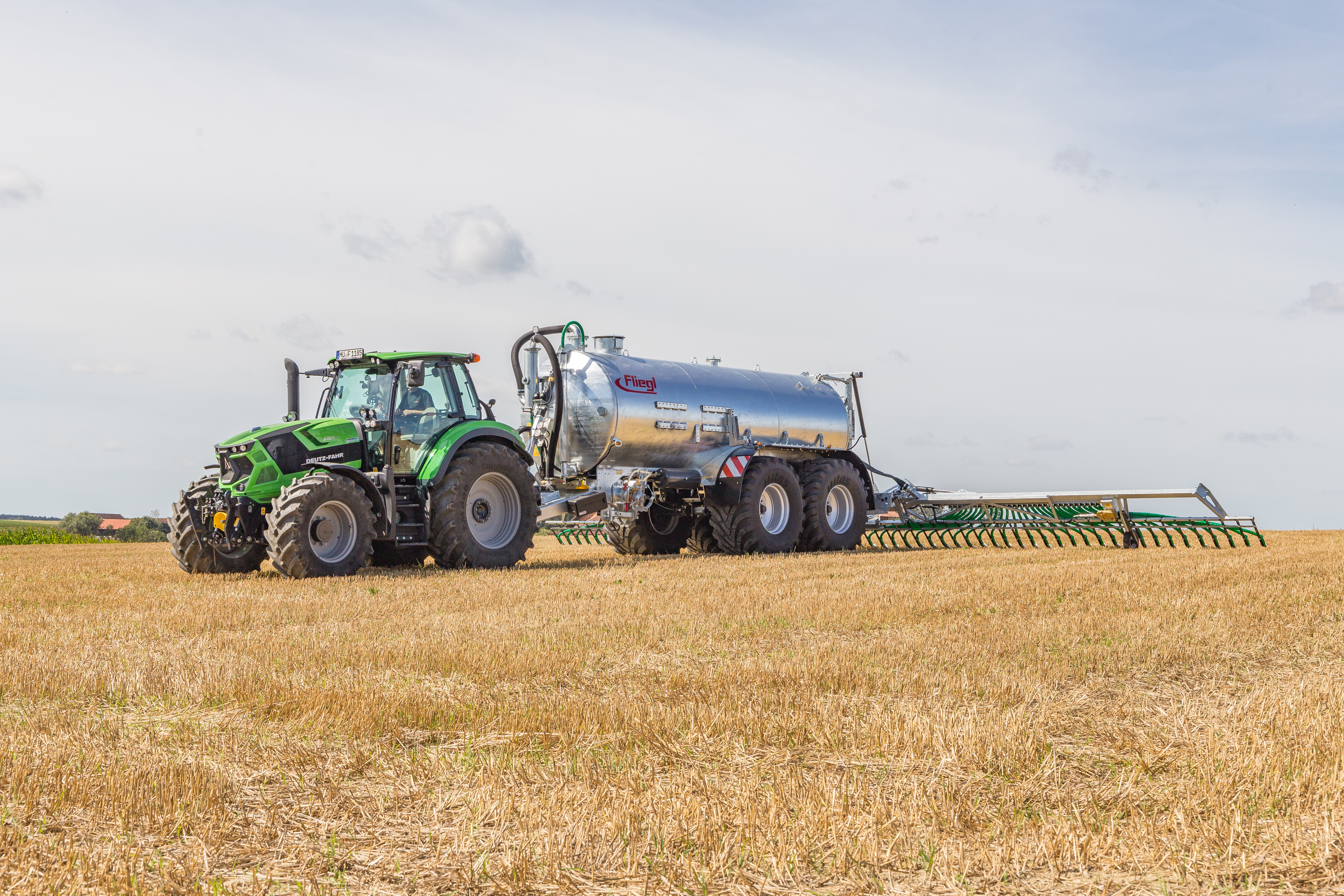

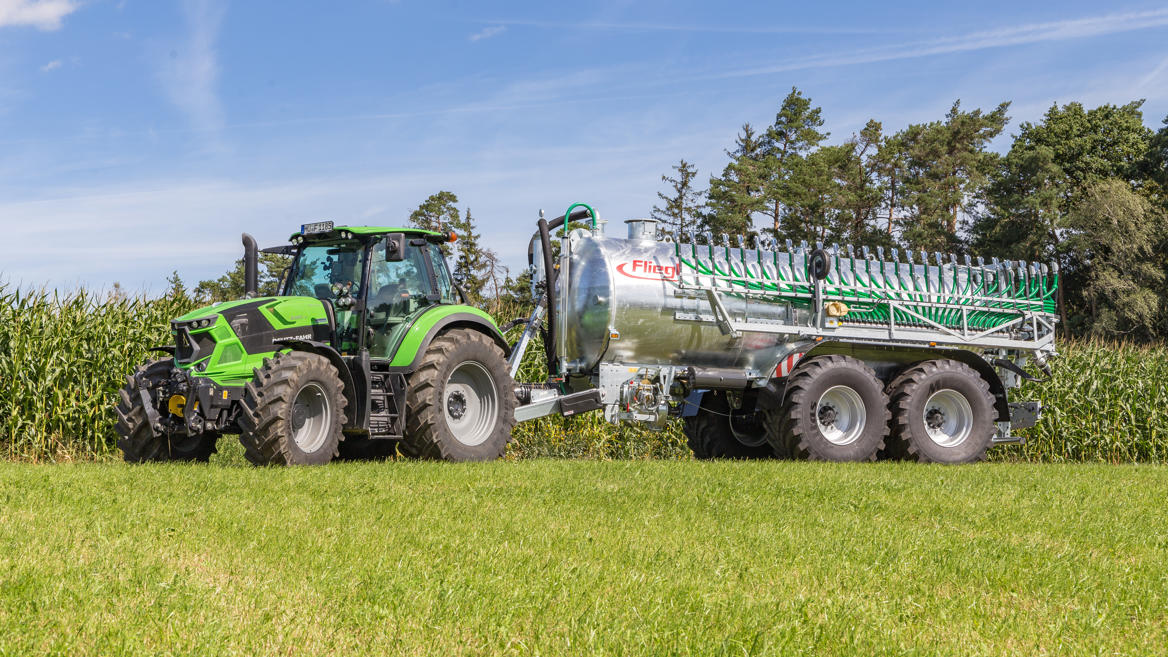

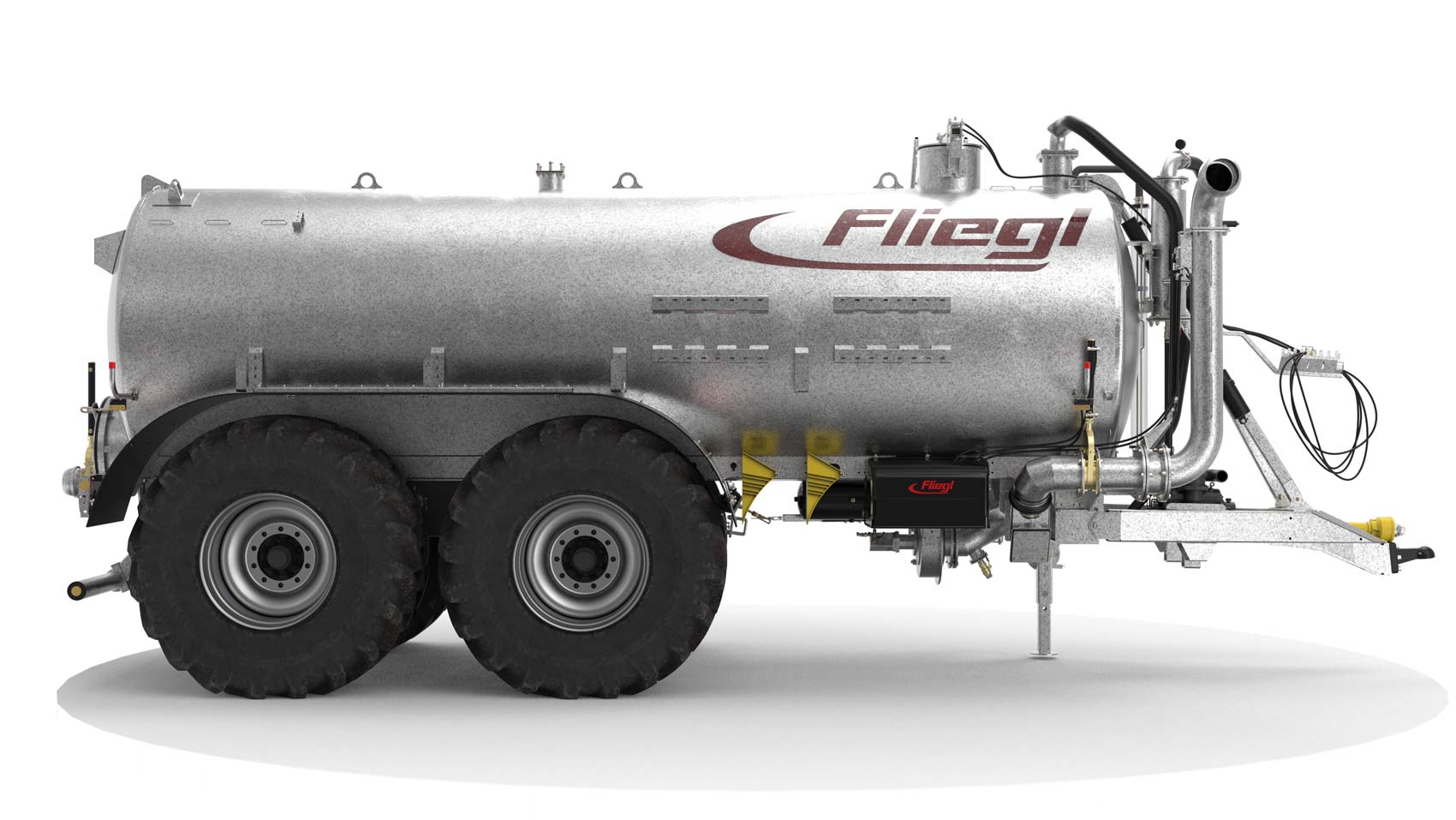

Maxx Line Plus Tankers
As an enhancement of the Maxx Line, the Maxx Line Plus range impresses with its standard equipment and value.
This includes a wide, high-volume tyre for improved driver comfort and reduced soil-compaction. Another benefit is the option of a centrally-mounted turbo-filler under the tank, for boosted filling speeds on both sides of the tanker, even with a suction arm (for vacuum tanker models).

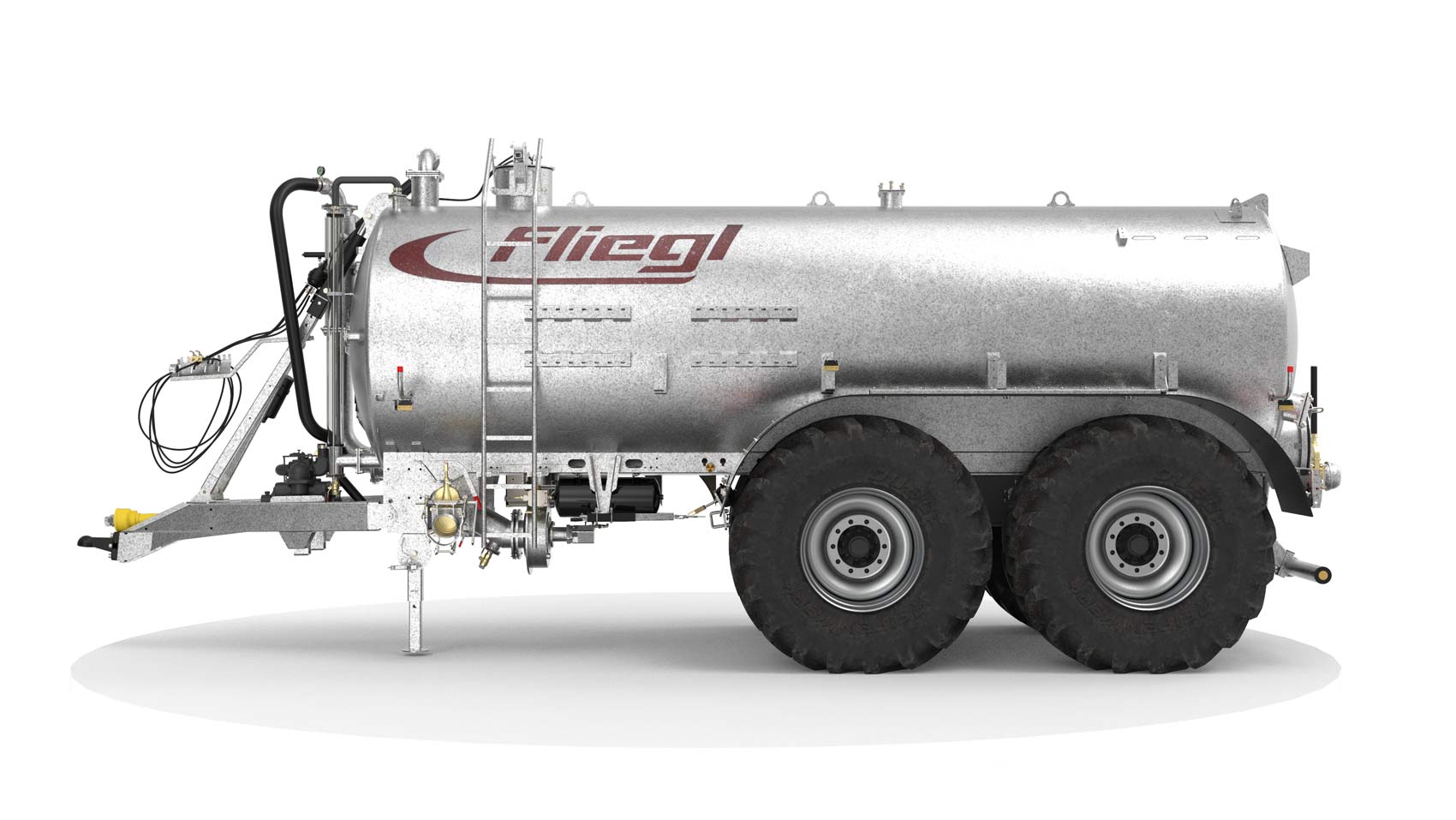

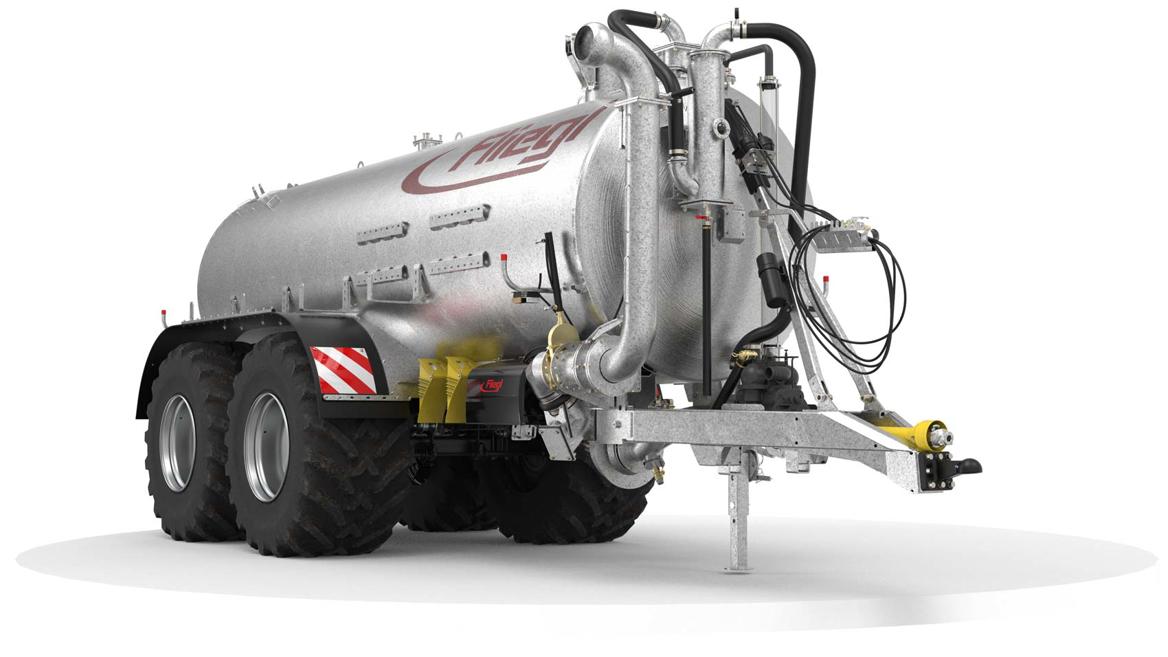

Tandem Axle
- 12,000l Vacuum or Pump
- 14,000l Vacuum or Pump
- 16,000l Vacuum or Pump
- 18,000l Vacuum or Pump
- 20,000l Vacuum or Pump
-
- Tandem chassis
- Fully galvanised steel tank of chosen volume
- Ball head K80 (Ø 80mm)
- Drawbar suspension incl. tank tipping cylinder and mechanical drop support jack
- Hydraulic single-line brake or compressed air brake system with ALB
- Gigant or Gigant Plus parabolic suspension (model dependent)
- Trailing axle: 2 brake axles, front axle rigid, rear axle trailed, hydraulically lockable max. speed of 60 km/h
- Axle type: BPW 410 x 180 brake drums (from 14,000ltr models)
- Tyres 750/60 R30.5, max. load per wheel 6740 kg at 40 km/h, spring centre: 900 mm
- 40 km/h version incl. mudguards, underride guard and side marker lights
- Wheel arch (less volume with wheel arch)
- 12,000 litre Hertell compressor max. 540 or 1000 rpm, heat-resistant
- 8" flange front center under the tank
- Blind flange 8" rear
- 6" suction slider with quick coupler, left
- Prepared for top-fill opening Ø=400 mm (in the front)
- Fill level indicator
- Siphon
- Foam separator
- Silencer with oil separator for compressor
- Rear-mounted hydraulic slider
- Hydraulic tapered rotary valve
- Hose holder (not possible in combination with drag shoe or dribble bar distributor)
- Continuous and robust angular frame
- 12V LED lighting with 7-pin connector
- 2 or 3 internal baffle plates (model dependent)
- 600 mm rear access hatch
- PTO drive shaft, wide angle one side
- Brackets in preparation for distribution attachment (drag shoe, dribble bar or disc injection)
-
Equipment Upgrades
- Piton-Fix (Ø 50 mm)
- Pivoting drawbar eye (Ø 50 mm)
- Drawbar with swivelling eye (Ø 51 mm)
- Forced steering: 2 brake axles, front rigid, rear steered K50
- 13,000l Battioni vacuum compressor, 540 or 1000 rpm
- 8" suction slider with quick coupler, left
- Hydraulic top-fill opening Ø=400mm with ladder on left/right
- Internal agitator (with air), including drain tap and hose on siphon

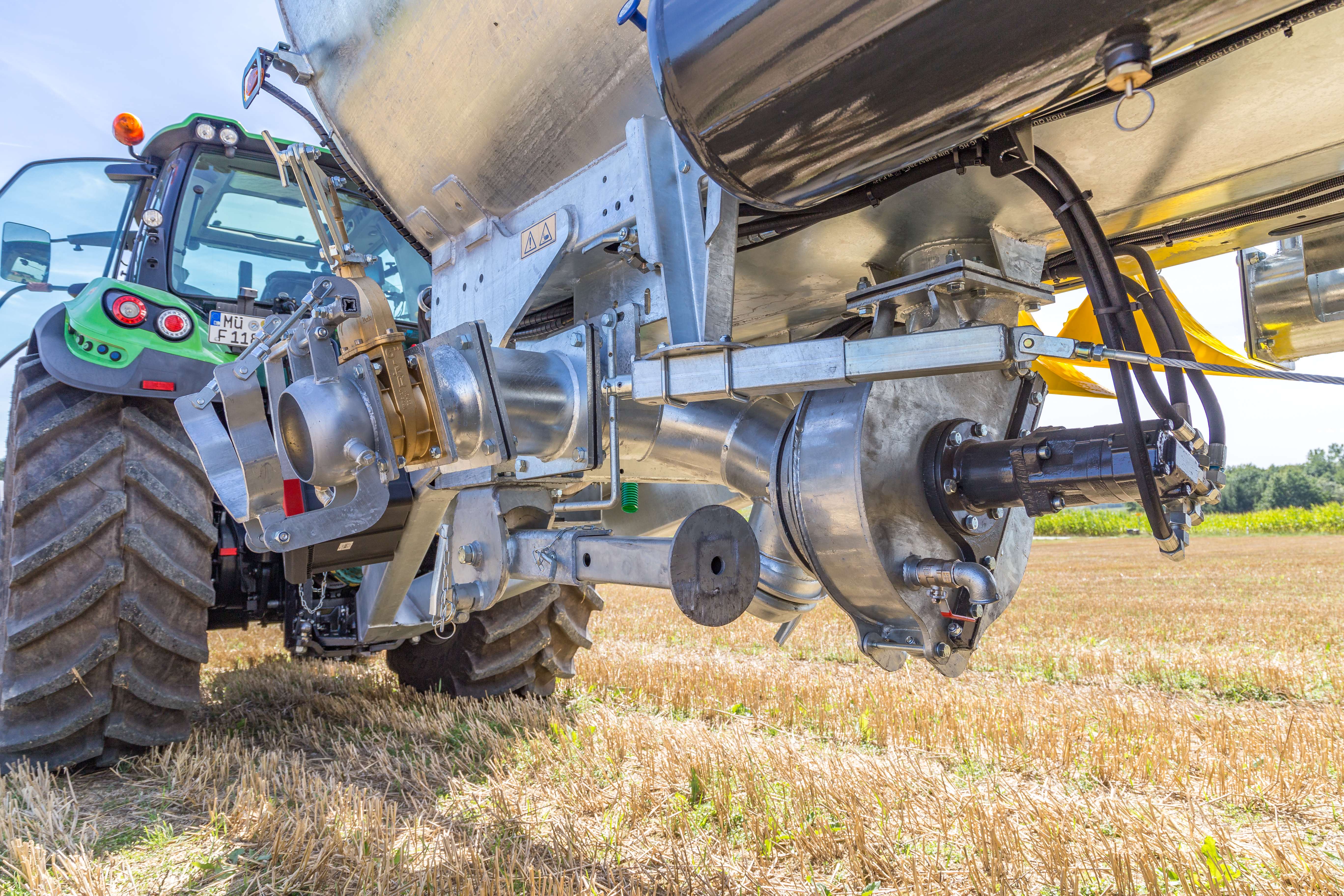

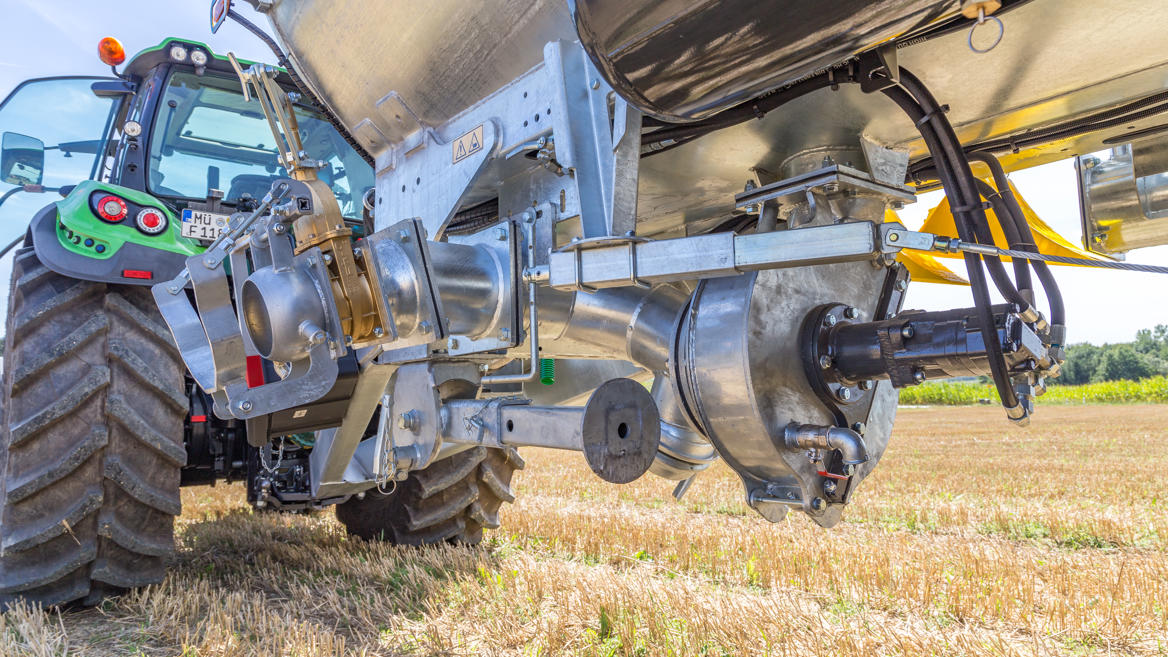

- Hydraulic turbo-filler under the tank
- Lubrication block on 2 lubrication points for tandem chassis
- Four-point hydraulics: lifting force 2000 kg Cat. 2
- Four-point hydraulics: lifting force 4500 kg Cat. 3
- 8" suction nozzle, incl. compressor changeover and docking station, left/right in direction of travel
- Hydraulic discharge accelerator fitted behind tank for slurry
- Hydraulic discharge accelerator with shredding cutter fitted behind tank for slurry
- Various pipe and hose length options
- 5-way or 6-way control block options with load sensing
-
- Tandem chassis
- Fully galvanised steel tank of chosen volume
- Ball head K80 (Ø 80mm)
- Drawbar suspension incl. tank tipping cylinder and mechanical drop support jack
- Hydraulic single-line brake or compressed air brake system with ALB
- Gigant or Gigant Plus parabolic suspension (model dependent)
- Trailing axle: 2 brake axles, front axle rigid, rear axle trailed, hydraulically lockable max. speed of 60 km/h
- Axle type: BPW 410 x 180 brake drums (from 14,000ltr models)
- Tyres 750/60 R30.5, max. load per wheel 6740 kg at 40 km/h, spring centre: 900 mm
- 40 km/h version incl. mudguards, underride guard and side marker lights
- Wheel arch (less volume with wheel arch)
- Pre-fitted for approx. 600 x 600 mm sliding cover
- Pump Models: Armatec eccentric screw pump 4000l with stone trap
- 6" suction slider with quick coupler, left
- Fill level indicator
- Hydraulic tapered rotary valve
- Hose holder (not possible in combination with drag shoe or dribble bar distributor)
- Continuous and robust angular frame
- 12V LED lighting with 7-pin connector
- 2 or 3 internal baffle plates (model dependent)
- 600 mm rear access hatch
- PTO drive shaft, wide angle one side
- Brackets in preparation for distribution attachment (drag shoe, dribble bar or disc injection)
-
Equipment Upgrades
- Piton-Fix (Ø 50 mm)
- Pivoting drawbar eye (Ø 50 mm)
- Drawbar with swivelling eye (Ø 51 mm)
- Forced steering: 2 brake axles, front rigid, rear steered K50
- Armatec eccentric screw pump 6000 l with stone trap
- Wangen eccentric screw pump 4000 l with stone trap, 6" quick coupler left
- Wangen eccentric screw pump 4000 l with stone trap, 6" quick coupler left
- 8" suction slider with quick coupler, left
- Sliding cover approx. 600 x 600 mm hydraulic front incl. ladder and position display
- Lubrication block on 2 lubrication points for tandem chassis
- Four-point hydraulics: lifting force 2000 kg Cat. 2
- Four-point hydraulics: lifting force 4500 kg Cat. 3
- 8" suction nozzle with docking station, right/left in direction of travel, incl. pump case
- Various pipe and hose length options
- 5-way or 6-way control block options with load sensing
-
- Digital flow meter ISOBUS. Shows m³/ha and m³/min. and the suggested driving speed to reach the specified m³/ha (tractor with ISOBUS and TECU as per AEF required)
- Preparation for MCS EVO NIR sensor incl. bracket (only in combination with ISOBUS digital flow meter or DMR flow rate control), without NIR sensor and without MCS controller
